| UL STYLE |
Size |
Conductor Standard |
Conductor Minimum |
Average Thickness |
Min Thickness |
Overall Diameter |
Resistivity |
Standard |
| AWG |
mm2 |
mm2 |
mm |
mm |
mm |
DCR/20℃ |
Feet/Roll |

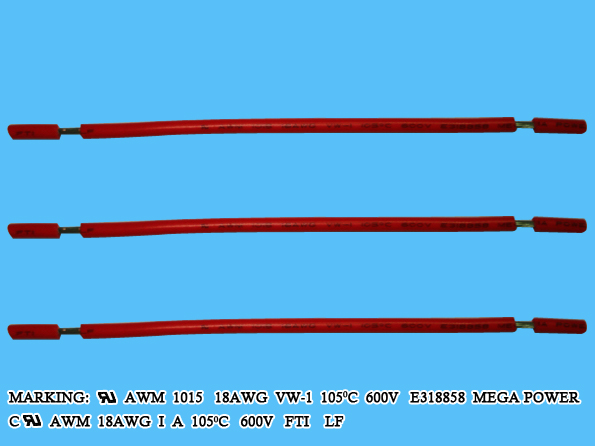

| UL1015 |
28 |
0.0804 |
0.079 |
0.76 |
0.68 |
1.95 |
237.25 |
2000 |
| 26 |
0.128 |
0.126 |
0.76 |
0.68 |
2.1 |
148.94 |
2000 |
| 24 |
0.205 |
0.201 |
0.76 |
0.68 |
2.2 |
93.25 |
2000 |
| 22 |
0.324 |
0.318 |
0.76 |
0.68 |
2.35 |
55 |
2000 |
| 20 |
0.519 |
0.509 |
0.76 |
0.68 |
2.5 |
34.6 |
2000 |
| 18 |
0.823 |
0.807 |
0.76 |
0.68 |
2.75 |
21.7 |
2000 |
| 16 |
1.31 |
1.28 |
0.76 |
0.68 |
3.05 |
13.7 |
2000 |
| 14 |
2.08 |
2.04 |
0.76 |
0.68 |
3.5 |
8.62 |
1000 |
| 12 |
3.29 |
3.24 |
0.76 |
0.68 |
4.1 |
5.43 |
1000 |
| 10 |
5.261 |
5.16 |
0.76 |
0.68 |
4.6 |
3.41 |
1000 |
|
|
|
|
